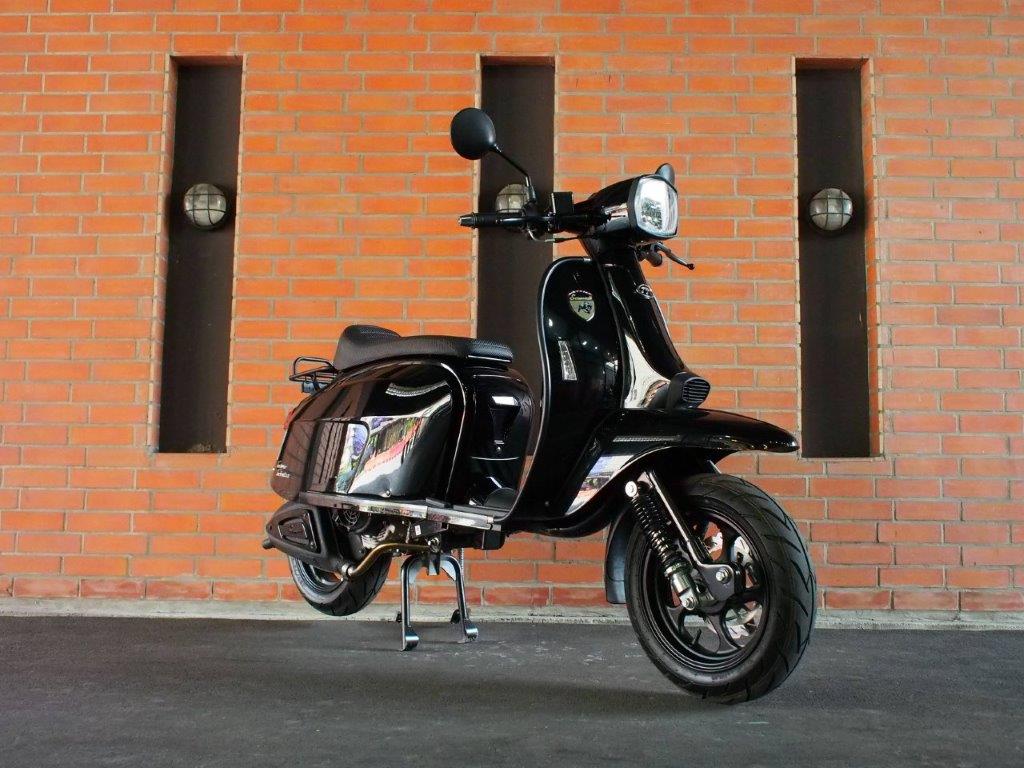

TT125 (Air Cooled)
Technology Data TT125 - Fuel Injection E4
Colour Options
- Stratos Silver
- Oxford Blue
- Old English White
Dual-White &Crimson
Dual - White&Blue- Panther Black
Gallery
Technical Specification
| Technical Specifications | |
|---|---|
| Dimensions | 1870(L)x620(W)x1115(H) |
| Wheelbase (mm) | 1370 |
| Dry Weight (kg) | 125kg |
| Max Load (kg) | 169kg |
| Ground Clearance (mm) | 330mm |
| Seat Height (mm) | 780mm |
| Displacement (cc) | 124.6 |
| Engine Type | Single Cylinder, Forced Air, SOHC, 2V |
| Bore/Stroke | 52,4/57,8mm |
| Compression Ratio | 10.5± 0.2 : 1 |
| Max net power, rate | 7.0/8000 |
| Max net torque, rate | 9.67/7200 |
| Ignition | Electronic CDI ignition |
| Fuel Injection | Delphi |
| Chassis | Space frame tubular chassis with steel/ABS bodywork |
| Front Suspension | Double hydraulic pre load adjustable shock absorber with coil spring and anti dive linkage system |
| Rear Suspension | Coil spring with adjustable preload (4 positions) hydraulic shock absorber |
| Starting Method | Electric |
| Front Tyre | Tubeless 110/70-12 |
| Rear Tyre | Tubeless 120/70-12 |
| Brake | CBS combined (F) 220mm Disc, (R) 200mm Disc |
| Battery (volts) | 12 volts |
| Fuel Tank Capacity (litres) | 11 litres |
| Emissions Compliance | Complies with Euro 4 multi-directive |
| Specification | Please note that the Technical Specification may be subject to change without prior notice |
